Product Overview
- Coolant System: Keeps workpiece cool.
- Smooth Control: Ultra-smooth slides and tri-spoke handle.
- Adjustable Magnet: Two-stage for precise positioning.
- Portable: Lightweight, includes carry case.

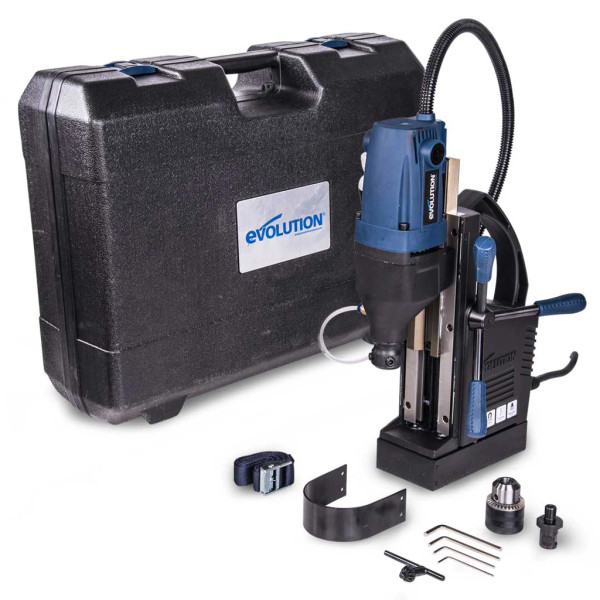

S28MAG 1-1/8 In. Magnetic Drill with Carry CaseSimple to use coolant system ensures that the workpiece stays cool while drilling.Textured, Tri-spoke spindle handle gives you ultimate control when lowering the drill.Ultra-smooth dovetail slides offer smooth and precise operation.2 stage magnet allows you to precisely configure the machine so you get a perfect result.Compatible with a range of Evolution premium annular cutters and accessories.Supplied in a robust carry case.
Cutting Capacities
| Maximum Annular Cutting Capacity | 1-1/8 in. / 28 mm |
| Maximum Cutting Depth | 2 in. |
| Cutter Shank | 3/4 in. |
| Standard Twist Drill Capacity | 1/2 in. |
| Minimum Plate Thickness | 3/8 in. |
Specifications
Machine
| Motor (120V 60Hz): | 10A |
| Speed No Load: | 450 rpm |
| Number of Speeds | 1 |
| Insulation Class | 1 |
| Cable Length: | 8ft 2inch |
| Magnetic Adhesion | 2860lbs f |
Dimensions
| Magnet Dimension | 1-5/8 x 3-1/2 x 7-1/8 in. |
| Maximum Machine Height | 25-5/8 in. |
| Minimum Machine Height | 16-1/2 in. |
| Machine Width | 7-7/8 in. |
|
Product Weight: |
26 lb |
Items Included
| Instruction Manual |
| Coolant System |
| Safety Guard & Fixings |
| Safety Strap |
| Feed Handles x3 |
| Hex Keys - x2 |
| Chuck with Chuck Key |
| Carry Case |
