Product Overview

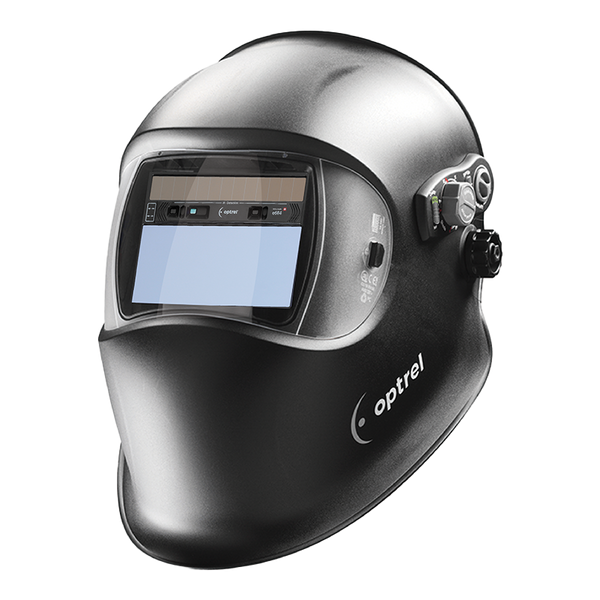

Optrel e684 (Black), Welding Helmet
Part number: 1006.501
Applications:
- Electrode Welding (Stick Welding, SMAW)
- MIG/MAG (GMAW)
- GMAW High melting rate process
- Flux Cored Wire Welding
- TIG Welding (GTAW)
- Plasma Arc Welding
- Micro Plasma Arc Welding
- Plasma Cutting
Specifications:
| ADF size / field of view | 90 x 110 x 7 mm / 50 x 100 mm |
| Eye protection | maximum UV- & IR-protection on all shade levels |
| Classification EN379 | Optical Class: 1 Stray Light Class: 1 Homogeneity Class: 1 Angle Dependency Class: 1 |
| Classification due to EN175 | B (120m/s impact resistance) |
| Switching time light to dark | 0.170 ms at room temperature, 0.110 ms at 55 °C |
| Switching time dark to light | 0.1 – 2.0 s with patented twilight function |
| Power supply | solar cells and 2 batteries, exchangeable |
| Operating time batteries | appr. 3000 hours (operation) |
| Operating temperature | –10 °C to +70 °C |
| Total Weight | 500 g |
| Warranty | 2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months: click here to register |
