Product Overview

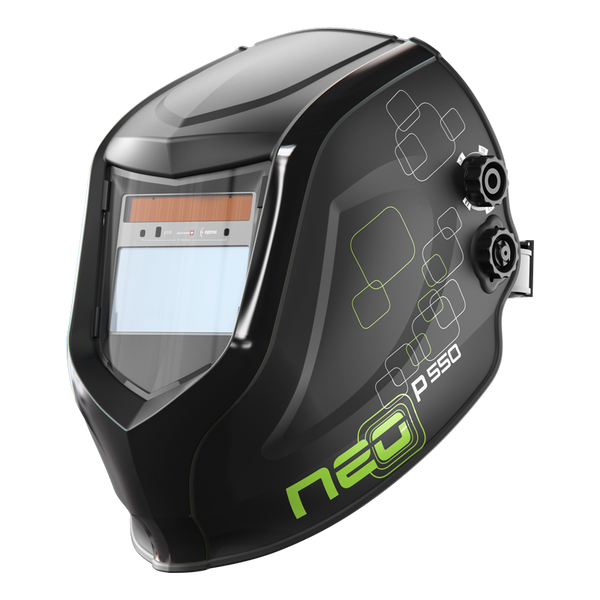

Optrel Neo p550 (Black) Welding Helmet
Part number: 1007.000
Applications:
- Electrode Welding (Stick Welding, SMAW)
- MIG/MAG (GMAW)
- GMAW High melting rate process
- Flux Cored Wire Welding
- TIG Welding (GTAW)
- Plasma Arc Welding
- Micro Plasma Arc Welding
- Plasma Cutting
Specifications:
| Shade levels | Inactive: Shade level 4, Active: Shade level 9-13 |
| Power supply | Solar cells, 2 pcs batteries 3V exchangeable (CR2032) |
| Battery life | Approx. 3,000 hours (operating) |
| Sensors | Three sensors |
| Sensitivity | Continuously adjustable, new with “Super High” sensitivity |
| Switching time | Light to Dark: 0.100ms at room temp, 0.100ms at 55°C Dark to Light: 0.05 s to 1.0 s |
| Field of View | 50 x 100mm 90 x 110 x 9.5mm |
| Classification EN379 | Optical Class: 1 Stray Light Class: 1 Homogeneity Class: 1 Angle Dependency Class: 2 |
| Shape Stability | Protective Welding Mask: up to 220°C Front Lens: Up to 137°C |
| Eye Protection | Ultraviolet / Infrared Protection: Maximum protection in the entire protection level range |
| Operating Temperature | -10°C to + 70°C / 14°F to 158°F |
| Storage Temperature | -20°C to +70°C / -4°F to 176°F |
| Total Weight | 495g / 17.4oz |
| Scope of Delivery | Welding helmet, Operating Instructions, Batteries |
| Guarantee | 2 years with additional 1 year warranty extension (excluding battery) |
